BrickBlock
Aluminum Brick and Paver Restraint

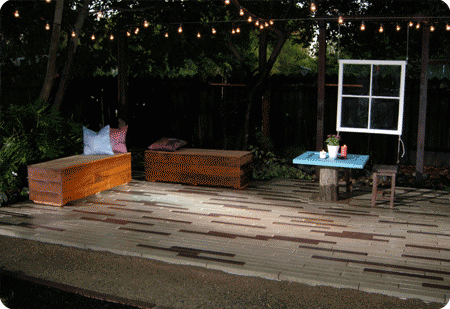

Permaloc BrickBlock for brick paver applications.Permaloc BrickBlock

BrickBlock™ is an economical aluminum paving restraint system that is designed as a permanent, reversible edging that is easier to install and out-performs plastic, PVC and steel systems. BrickBlock has two base options, each allowing one part to be used for both straight and curvilinear applications. BrickBlock’s low profile promotes healthy turf growth, and allows for irrigation heads to be placed along the paver’s edge.

  • BrickBlock’s patented QuickClip™ connection system allows pieces to connect together effortlessly. Simply butt two ends together and slide the clip over the top to firmly join pieces.
  • The engineered ACCUTRAC™ Base System is rigid for clean straight runs, and can form smooth curves by cutting the bridge support.
  • The V-TRAC™ Base System is a notched base allowing for smooth curves with no cutting.
  • BrickBlock readily forms curves, radii and angles, allowing wide installation flexibility.
  • BrickBlock qualifies for LEED points.



Sizes & Finishes (thickness x height)

BrickBlock is available in 8' sections.

.065" x 1-3/4"  (1.65mm x 44.5mm) Our light duty restraint designed for residential patio and walkway applications.
.075" x 1-3/4"  (1.9mm x 44.5mm) Our medium duty paver restraint used for patios, walkways and driveways.
.075" x 2-3/4"  (1.9mm x 69.9mm) Our medium duty paver restraint used for patios, walkways and driveways, as well as permeable paver applications.





Application Detail Downloads

 BrickBlock Brick Paver Applications Paver - Restraining Paver and Setting Course on Compact Base Course Restraint Away from Paver (Typical)
CAD Files BB-1
PDF DWG
 BrickBlock Brick Paver Applications Paver - Restraining Paver and Setting Course on Compact Base Course Restraint Under paver (Alternate Method)
CAD Files BB-2
PDF DWG
 BrickBlock Brick Paver Applications Paver - Restraining Paver and Setting Course over Asphalt Base Bed along Walk
CAD Files BB-3
PDF DWG
 BrickBlock Brick Paver Applications Paver - Restraining Paver and Setting Course over Concrete Base
CAD Files BB-4
PDF DWG



Specifications / Technical Data Downloads

10 Part Specification 3 Part Specification Technical Data Sheet Installation Instructions
